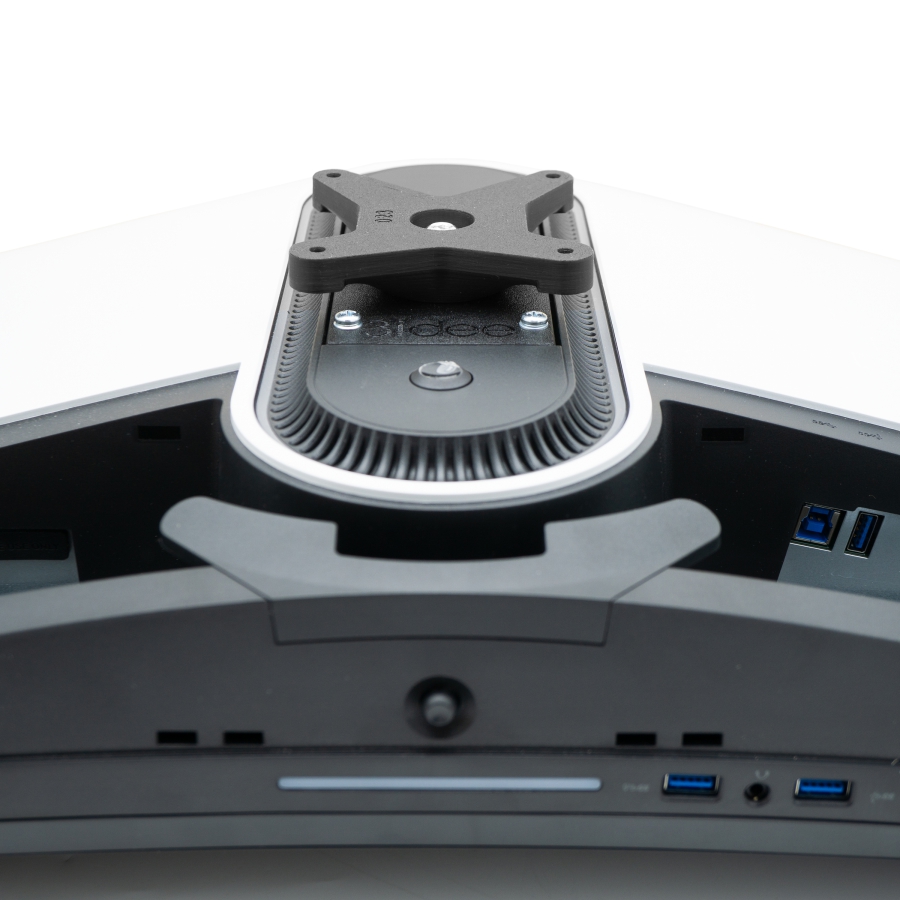

VESA adapter compatible with DELL Alienware Gaming Monitor (AW3423DW) - 75x75mm
VESA adapter for the DELL Alienware Gaming Monitor AW3423DW - the upgrade for your gaming experience!
| 1 - 4 | 19,65 € |
| 5 - 9 | 19,26 € |
| 10 - 19 | 18,86 € |
| 20 - 39 | 18,08 € |
| > 40 | 17,69 € |
Payment methods
Shipping
Offer of the month
--75x75mm___106_0_978034.jpeg)
--75x75mm___209_0_647369.jpg)
--75x75mm___104_0_740030.jpeg)
--75x75mm___105_0_114875.jpeg)

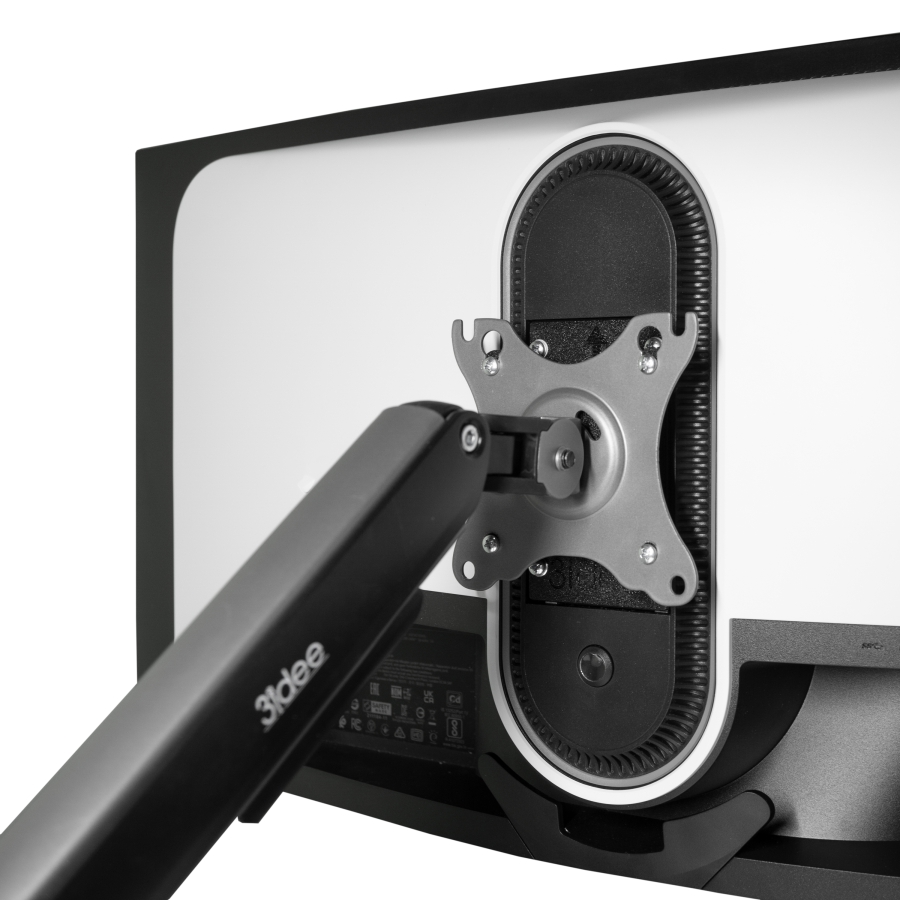

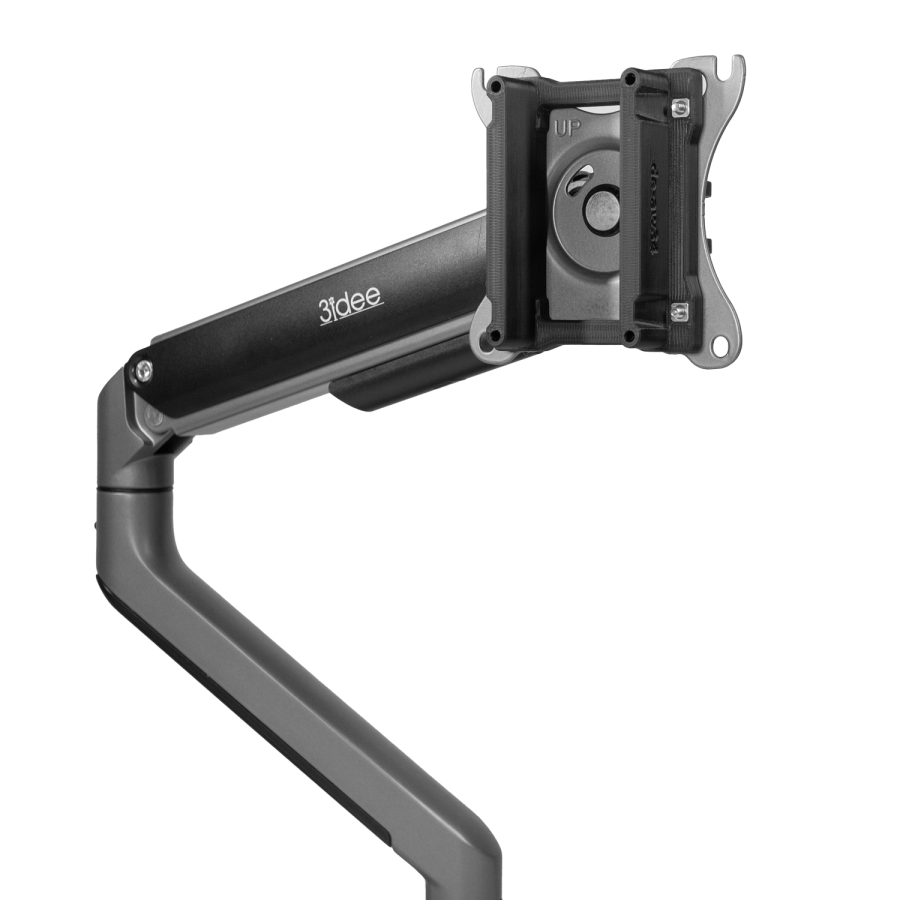

Would you like to mount your 34 inch DELL Alienware Gaming Monitor with a VESA monitor arm or wall mount? Our VESA adapter allows you to do just that! Expand your gaming horizons - our VESA adapter guarantees flexible mounting of your DELL Alienware monitor for a more immersive gaming experience.
Compatibility
This VESA adapter is compatible with the following DELL Alienware gaming monitor:
Quality
Our VESA adapters for DELL monitors are not only practical, but also sustainable and robust. Made from recycled PLA plastic using the latest 3D printing technology, they meet the highest quality standards. Each adapter is individually tested to ensure the maximum load for the DELL Alienware gaming monitor. So you can be sure that you are getting a product that is both environmentally friendly and extremely reliable. Learn more about our product safety standards.
Easy installation
Installation is a breeze thanks to our click system. All necessary screws are included. A detailed instruction manual and PDF version are available.
Graduated prices
We offer attractive discounts for orders of more than one adapter, both for our private customers and for companies. Take this opportunity to benefit from our generous discounts and fulfill your requirements. Graduated prices apply from 2 VESA adapters.
VESA standard
Our adapter complies with the MIS-D VESA standard 75x75mm, giving you maximum flexibility when positioning your DELL Alienware gaming monitor.
Table of contents
This VESA adapter is compatible with the following DELL monitors :
AW3423DW
⚠ WARNING
To minimize the risk of injury, it is important to read all instructions carefully before installation. We accept no liability for personal or material damage caused by improper use of this product.
Also, be sure to observe the technical specifications of the product.
1. Read all instructions thoroughly.
2. A faulty installation can lead to damage or serious injury. Ensure that the product and the monitor are securely mounted before use.
3. Make sure that the mount to which the product is attached can easily support the total weight of the monitor, computer, and adapter.
Here you can download the manual as a PDF
- Maximum monitor weight: 7 kg / 15.4 lbs
- VESA standard compatibility: 75x75 mm
- Material: plastic
- Pivot angle: compatible (90°)
- Maximum operating temperature: 35°C / 95°F
- Maximum ambient temperature: 35°C / 95°F
⚠ WARNING
Exceeding the maximum load capacity, operating temperature or ambient temperature can lead to serious injury or damage.
 |
Please read this manual carefully and keep it for future reference. If you pass the product on to third parties, this manual should always be included. Ignoring these instructions may result in injuries or damage to people and products, for which we cannot accept any liability. |
||||||
IMPORTANT - FOR FUTURE REFERENCE.
• The use of this product should always be in accordance with the specified safety instructions.
• Do not install your VESA adapter in combination with the monitor in places where people are underneath.
• Do not exceed the maximum weight of the compatible monitor models, as this may result in serious injuries or property damage.
• Pay attention to the maximum ambient temperature of 35°C when using the product.
• Do not mount the VESA adapter near a heat source or in direct sunlight, as this may cause the adapter to overheat.
• Check if your mounting point (e.g., monitor arm) can support the weight of the monitor with the VESA adapter.
• The product is designed exclusively for mounting with a hole pattern of 75x75 mm.
• After installing the VESA adapter, the position of the monitor must be readjusted to ensure proper ergonomics.
⚠ WARNING
Ensure that the device is turned off and disconnected from the power supply before installation to avoid possible injuries or damage.
Check the product carefully for possible transport damage and for the absence of accessories, such as screws, which should be included in the scope of delivery.
⚠ CAUTION
Make sure that packaging materials and small screws and parts contained therein are inaccessible to children to minimize the risk of choking and other risks.
2.1 Maintenance
- It is recommended to check every three months that all screws are still tight. Also, regularly check the condition of all components of the product.
- Store the product in a cool and safe place, ideally at a maximum storage temperature of 40°C. For additional safety, keep the product away from children and preferably in its original packaging.
- Avoid any vibrations and shocks so as not to affect the life and functionality of the product.
2.2 Cleaning
- No corrosive or hot cleaning agents should be used to clean the product. Likewise, wire brushes, metal or other sharp materials are unsuitable for cleaning and should not be used.
- For gentle and effective cleaning, the use of a soft, damp cloth is recommended.
For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area.
3idee S.à r.l.
19 Rue de Bitbourg
L-1273 Luxembourg
Luxembourg
mail: info@3idee.eu
If you need help with your article, we are here for you. We also appreciate any feedback.
https://help.3idee.eu/en/contact
4x M4x14 screw with cross slot (SP2)
4x M4x30 screw with cross slot (SP21)
4x K-washer for M4 (SP27)
⚠ NOTE: Please check before assembly that all accessory parts are complete. If anything is missing, please contact our customer service immediately by email or phone. We are happy to assist you.
⚠ NOTE: Not all VESA adapters and monitors are designed for a vertical (portrait) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can be quickly exceeded if not mounted properly.
We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.
By default, however, monitors are designed for a horizontal orientation.
Horizontal Mounting: YES
Vertical Mounting: YES

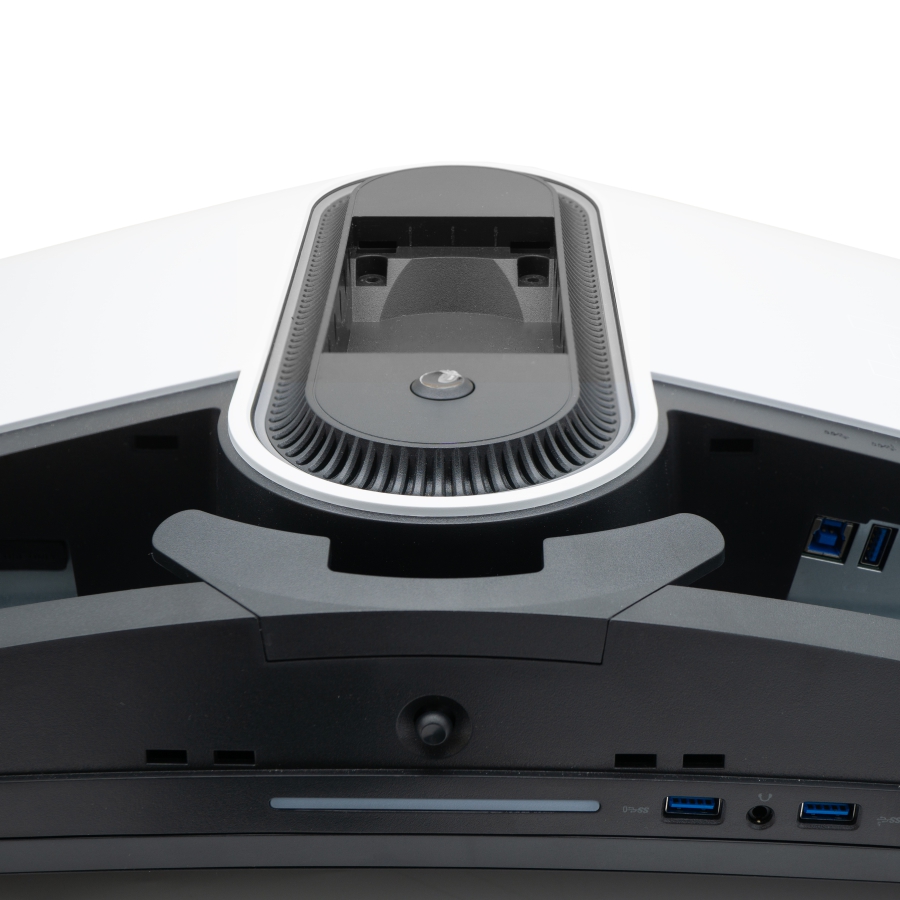

Remove the base of your Dell Alienware monitor by loosening the 4 screws and then moving the slider up.

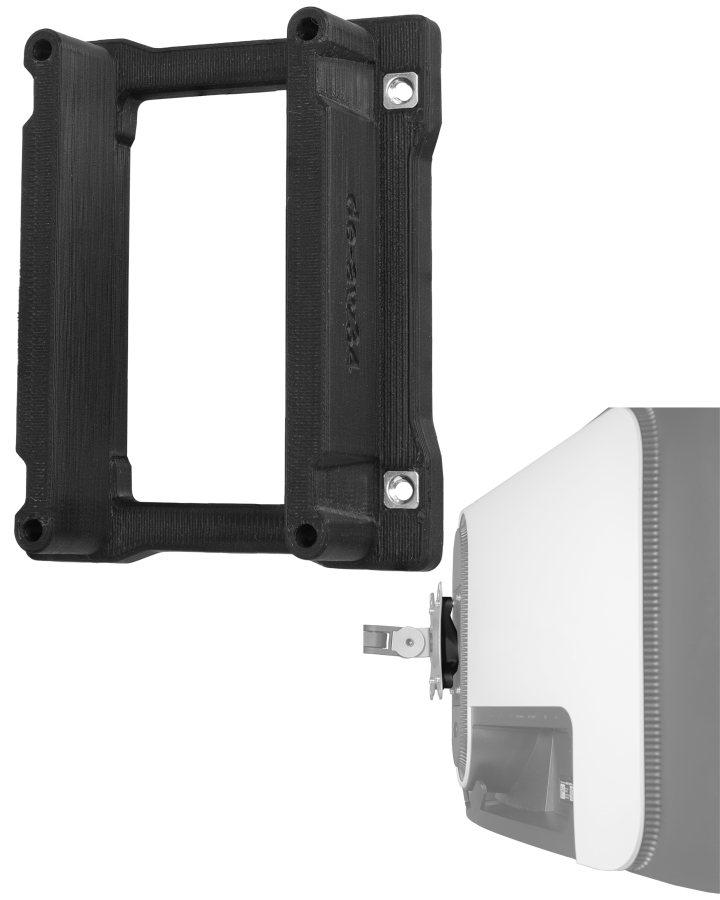

Now insert the 3idee VESA adapter as shown into the mount of your monitor and secure it using the included screws (screw bag: SP21) + washers (separate bag). (Figure 1)
de-aw34-pic1.jpg)
Figure 1
⚠ NOTE: If the instructions provided in this step are not suitable for your device, please follow the manufacturer's assembly guidelines for your monitor arm or swivel arm to attach the monitor to the wall or the swivel arm.
For this step, we recommend having a 2nd person.

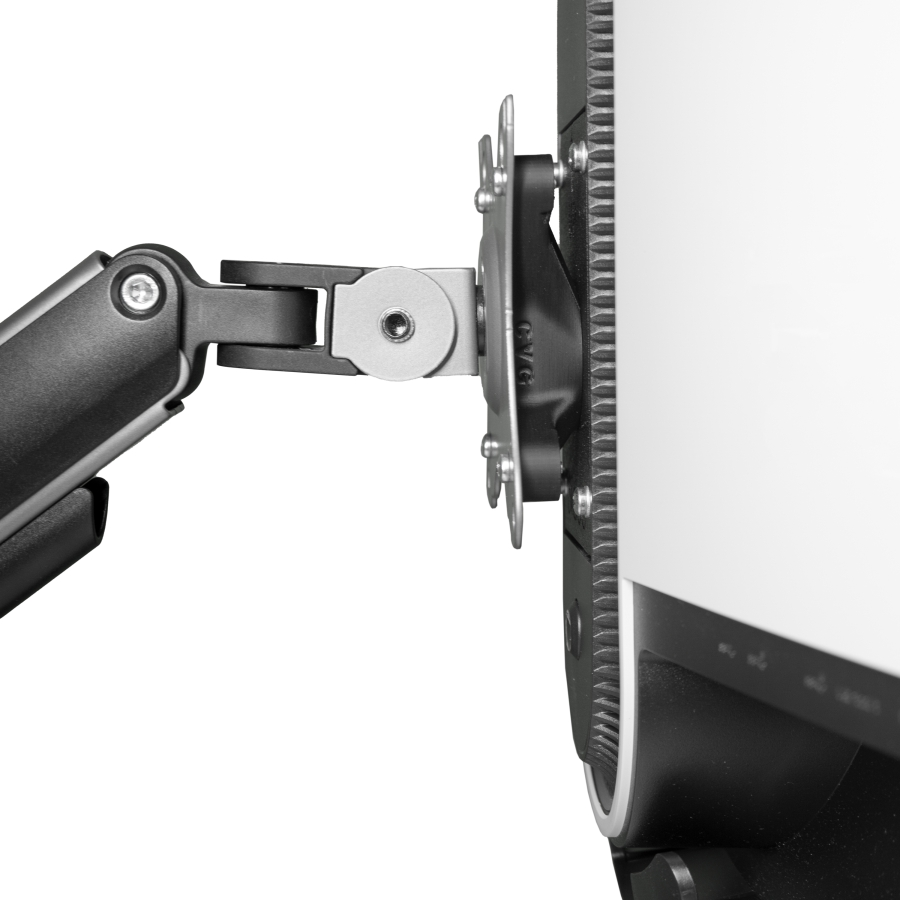

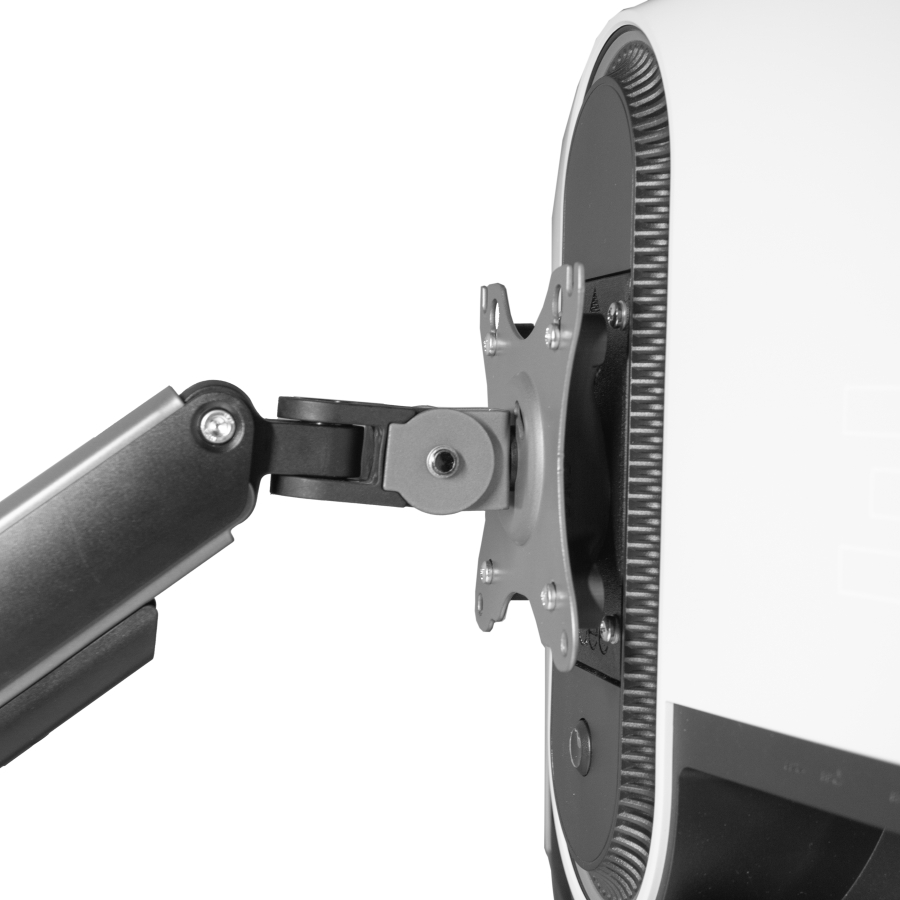

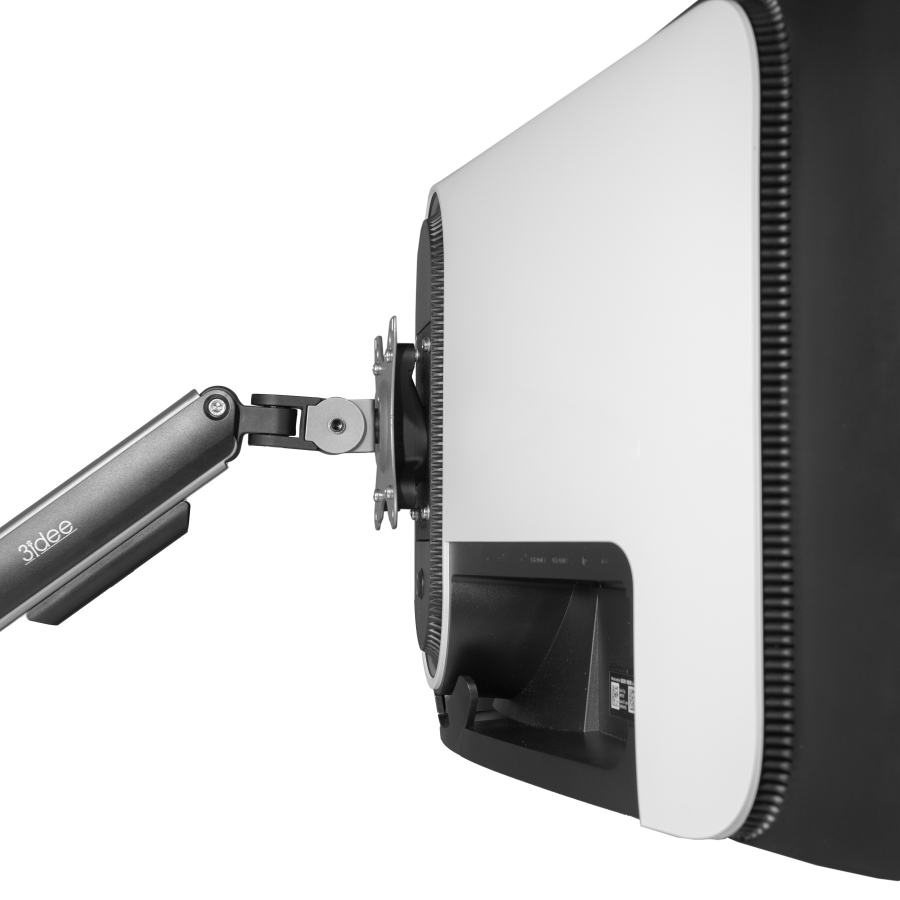

Now lift the monitor and hold it against your monitor mount. Attach the VESA adapter using the 4 included M4x14 screws (Screw bag: SP2).
It is best to first secure 2 screws diagonally so that the monitor cannot fall down, allowing you to easily attach the remaining screws.
⚠ NOTE: Pay attention to the correct screws!
(Figure 2)
de-aw34-pic2.jpg)
Figure 2
Please check if you have tightened all screws correctly. (Figure 3)
de-aw34-pic3.jpg)
Figure 3
Attention ne s’adapte pas à tous les écrans Alienware parfaitement sur un aw3423dwf cela fonctionne mais ce n’est pas parfait et je ne recommande pas le produit pour cette ecran
Habe mir das genau angesehen, weil es so viel schlechte Sachen gibt, aber diese Firma macht perfekte Teil, kann ich nur empfehlen.
Il prodotto è perfetto per il modello dichiarato e le viti di fissaggio sonodi buona qualità.
If you were like me who bought a Dell AW3423DW which didn't ship with a VESA Adapter but only realised when they bought a monitor arms 2 years after purchase then this may be the product for you!
I was a bit dubious at first as it is 3D Printed but upon inspection it feels good and sturdy! only time will tell if I was correct to put my faith in this product for my £1k monitor but will update this review if anything were to happen!
